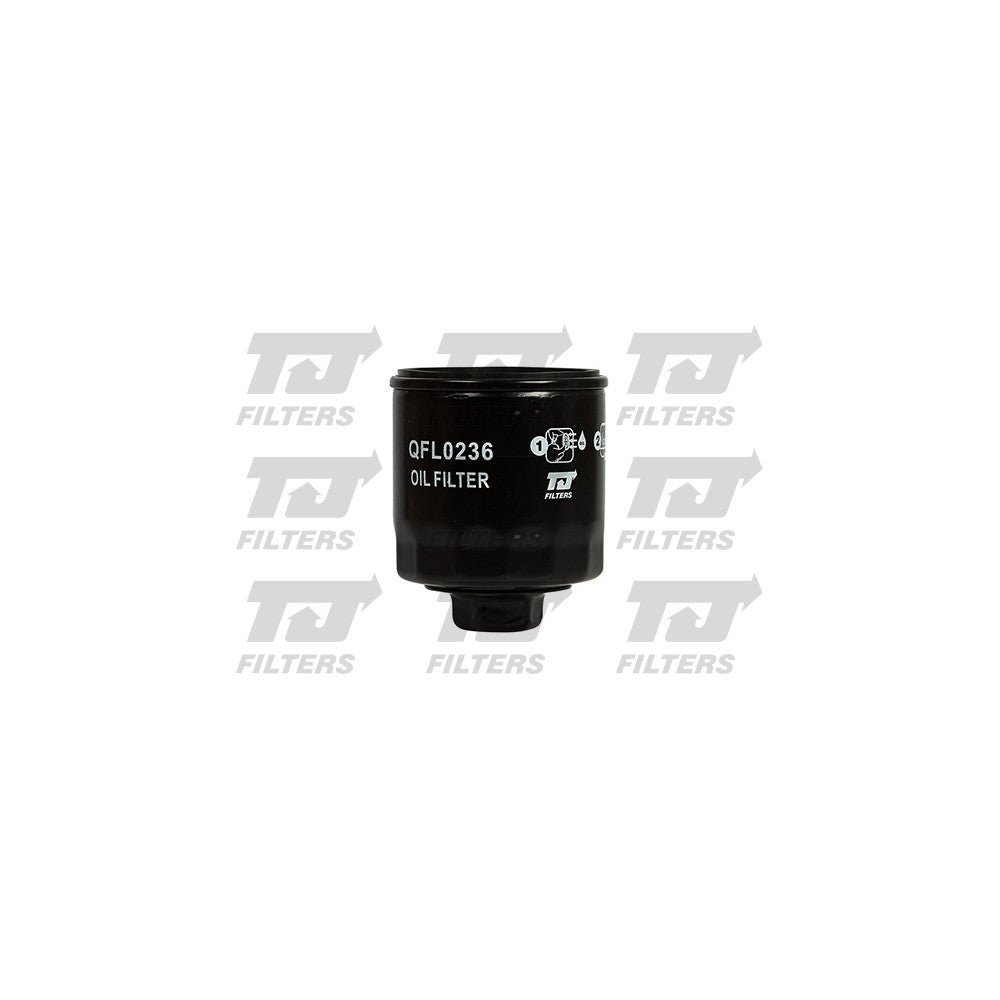

TJ Filters Engine Oil Filter QFL0236 for VW, Audi, Seat, Skoda (1985 to 2025)

Product Type: Spin-on Oil Filter

Overview: The TJ Filters QFL0236 is a high-quality spin-on engine oil filter manufactured by Quinton Hazell (QH) to meet or exceed Original Equipment (OE) specifications. This filter is widely used across a vast range of Volkswagen Audi Group (VAG) vehicles, primarily equipped with various 1.0L to 1.6L petrol engines, and some older or specific diesel applications. It efficiently removes harmful contaminants such as carbon deposits, metal particles, and sludge from engine oil, ensuring optimal lubrication and prolonging engine life. Its robust construction includes an anti-drain back valve for immediate oil supply at startup and a bypass valve to prevent oil starvation in extreme conditions.

Vehicle Compatibility: This filter demonstrates extremely broad compatibility due to widespread engine sharing across the VAG group over many years. Verify fitment with your vehicle's specific make, model, year, engine code, and original part number for 100% accuracy.

• Audi:
  • A2 (8Z0): 1.4 (2000-2005)
  • A3 (8L1, 8P1, 8PA): 1.6 (1996-2012)

• Seat:
  • Arosa (6H): 1.0, 1.4 (1997-2004)
  • Cordoba (6K1, 6K2, 6L2): 1.0, 1.4, 1.6 (1993-2009)
  • Ibiza II, III, IV, V (6K1, 6K_, 6L1, 6J5, 6P1): 1.0, 1.3, 1.4, 1.6 (1993-Present)
  • Inca (6K9): 1.4 (1995-2003)
  • Leon (1M1, 1P1): 1.4, 1.6 (1999-2012)
  • Toledo I, II, IV (1L, 1M2, KG3): 1.4, 1.6 (1991-2019)

• Skoda:
  • Fabia I, II (6Y2, 6Y5, 542, 545): 1.0, 1.2, 1.4, 1.6 (1999-2014)
  • Octavia I, II (1U2, 1U5, 1Z3, 1Z5): 1.4, 1.6 (1996-2013)
  • Roomster (5J): 1.2, 1.4, 1.6 (2006-2015)

• Volkswagen (VW):
  • Caddy II, III (9K9A, 9K9B, 2KA, 2KH, 2CA, 2CH): 1.4, 1.6 (1995-2015)
  • Golf II, III, IV, V, VI, VII (19E, 1G1, 1H1, 1H5, 1J1, 1J5, 1K1, 5M1, 521, 5K1, AJ5, 5G1, BQ1, BE1, BE2, BA5, BV5): 1.0, 1.3, 1.4, 1.6 (1985-Present)
  • Jetta II (19E, 1G2, 165): 1.3, 1.6 (1983-1992)
  • Lupo (6X1, 6E1, 6ES): 1.0, 1.4, 1.6 (1998-2005)
  • Passat (3A2, 3A5): 1.6 (1988-1996)
  • Polo I, II, III, IV, V (86, 86C, 80, 6N1, 6N2, 6V2, 6V5, 9N_, 6R1, 6C1): 1.0, 1.3, 1.4, 1.6 (1981-Present)
  • Sharan (7M8, 7M9, 7M6): 1.8 T, 2.0 (1995-2010)
  • Touran (1T1, 1T2, 1T3): 1.6 (2003-2015)
  • Transporter IV (70A, 70H, 7DA, 7DH): 2.0 (1990-2003)
  • Vento (1H2): 1.4, 1.6 (1991-1998)

Technical Details:

• Filter Type: Spin-on Oil Filter
• Height: Approximately 92 mm - 93 mm
• Outer Diameter: Approximately 76 mm - 78 mm
• Thread Size: UNF 3/4"-16
• Anti-Drain Back Valve (ADBV): Integrated to ensure the filter remains full of oil when the engine is off, preventing dry starts.
• Bypass Valve: Integrated pressure relief valve allows unfiltered oil to flow if the filter media becomes clogged or oil viscosity is high, ensuring continuous lubrication.
• Sealing Gasket: High-quality, durable rubber sealing ring for a secure, leak-proof installation.
• Filter Media: High-efficiency, multi-layered synthetic blend or advanced cellulose fiber media, engineered to effectively trap contaminants while maintaining optimal oil flow.
• Housing Material: Robust, corrosion-resistant steel casing designed to withstand high engine oil pressures, vibrations, and harsh environments.
• Filtration Efficiency: Engineered to remove impurities including dirt, metallic particles, carbon deposits (soot), and sludge.
• Weight: Approximately 0.25 - 0.35 kg.
• Quality Standards: Manufactured under strict quality control processes by Quinton Hazell, adhering to international automotive industry standards such as ISO 9001 and IATF 16949.

OEM (Original Equipment Manufacturer) Equivalents:

• VAG (Audi / Seat / Skoda / VW):
  • 030 115 561 AA, 030 115 561 AB, 030 115 561 AD, 030 115 561 AN
  • 030 115 561 E, 030 115 561 F, 030 115 561 K, 030 115 561 L, 030 115 561 P, 030 115 561 S
  • 047 115 561 B, 047 115 561 G

• Other common aftermarket cross-references:
  • MANN-FILTER: W 712/52
  • BOSCH: 0 451 103 318, 0 451 103 250
  • BLUE PRINT: ADV182102
  • WIX Filters: WL7203
  • Mahle: OC 295
  • Purflux: LS287
  • Hengst: H90W11
  • FRAM: PH5817
  • Febi Bilstein: 22532

Customer Support Note: If you have any confusion regarding compatibility or specific vehicle fitment, please do not hesitate to contact us directly. We are here to help you ensure you choose the correct part.
